The Cabrinha H-SERIES High Aspect foil range is the latest offering from Cabrinha’s state of the art foil design program in collaboration with Keahi De Aboitiz.
The H-series wings represent the pinnacle in hydrodynamic efficiency & performance while seamlessly integrates into the Cab Fusion Foil system.
The high aspect shape allows for effortless pumping, insane glide while retaining an 'easy-to-steer' feeling.
Whether you use them for wing, kite or foil-surfing, rise to the occasion with all of the H-series’ cutting edge features and be prepared for the endless ride…

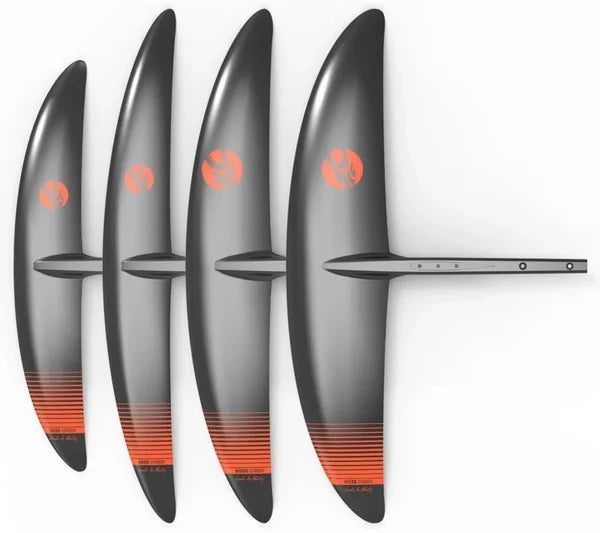

FUSION H-SERIES WINGS

HIGH PERFORMANCE

Sizes: H1200 / H1000 / H800 / H650

The H-SERIES High Aspect foil range is the latest offering from Cabrinha’s state of the art foil design program in collaboration with Keahi De Aboitiz.

The H-series wings represent the pinnacle in hydrodynamic efficiency & performance while seamlessly integrates into the Cab Fusion Foil system.

The high aspect shape allows for effortless pumping, insane glide while retaining an 'easy-to-steer' feeling.

Whether you use them for wing, kite or foil-surfing, rise to the occasion with all of the H-series’ cutting edge features and be prepared for the endless ride…

DESIGN PROFILE
Swept outline, Ultra lean efficient profile, moderate anhedral

WING FEATURES

• • Loose and agile feel for superior maneuverability
  • Ultra lean profile for wide speed range
  • Integrated fuselage with tapered fit
  • Incredible torsional stiffness
  • Full prepreg carbon construction
  • PMI core for superior strength to weight ratio
  • Moderate anhedral for a more efficient lift platform

 TECH SPECS

• • H650- 650cm², WS 720, AR 7.9, Chord 125mm
  • H800- 800cm², WS 900, AR 9.9, Chord 125mm
  • H1000- 1000cm², WS 900, AR 8.1, Chord 155mm
  • H1200- 1200cm², WS 900, AR 6.7, Chord 185mm

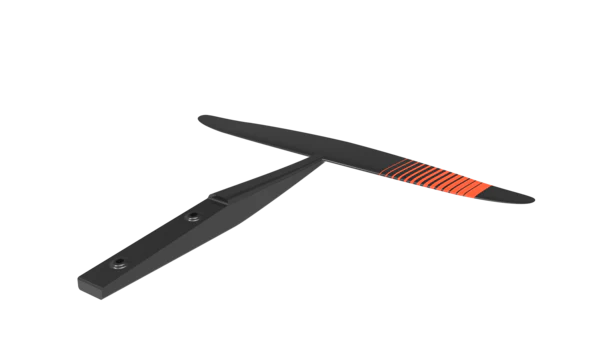

Cabrinha FUSION H-SERIES STABILISER REAR WING

Sizes: HS180

The HS180 High Aspect Stabilizer has been seamlessly molded as one single component into the fuselage to give exceptional efficiency and stiffness. This allows the rider complete control through varying degrees of the turn and has been precisely tuned for use with all H-series and X-series wings.

DESIGN PROFILE
Swept outline, ultra lean efficient profile and moderate anhedral

WING FEATURES

• Optimal efficiency and maneuverability
• Flat center, to downward tips, for perfect balance between locked-in feel and agility
• Single molded components for minimal drag
• Full prepreg carbon construction
• PMI core for superior strength to weight ratio

TECH SPECS

• 420mm, 180 cm², AR 9.8

Set Includes:

Stabilizer, wing covers, 2pcs m6 ss316 torx Ti coated screws.

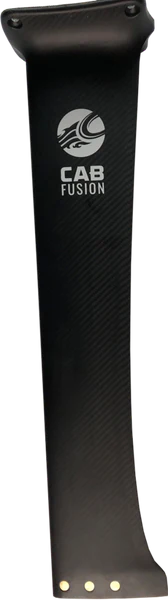

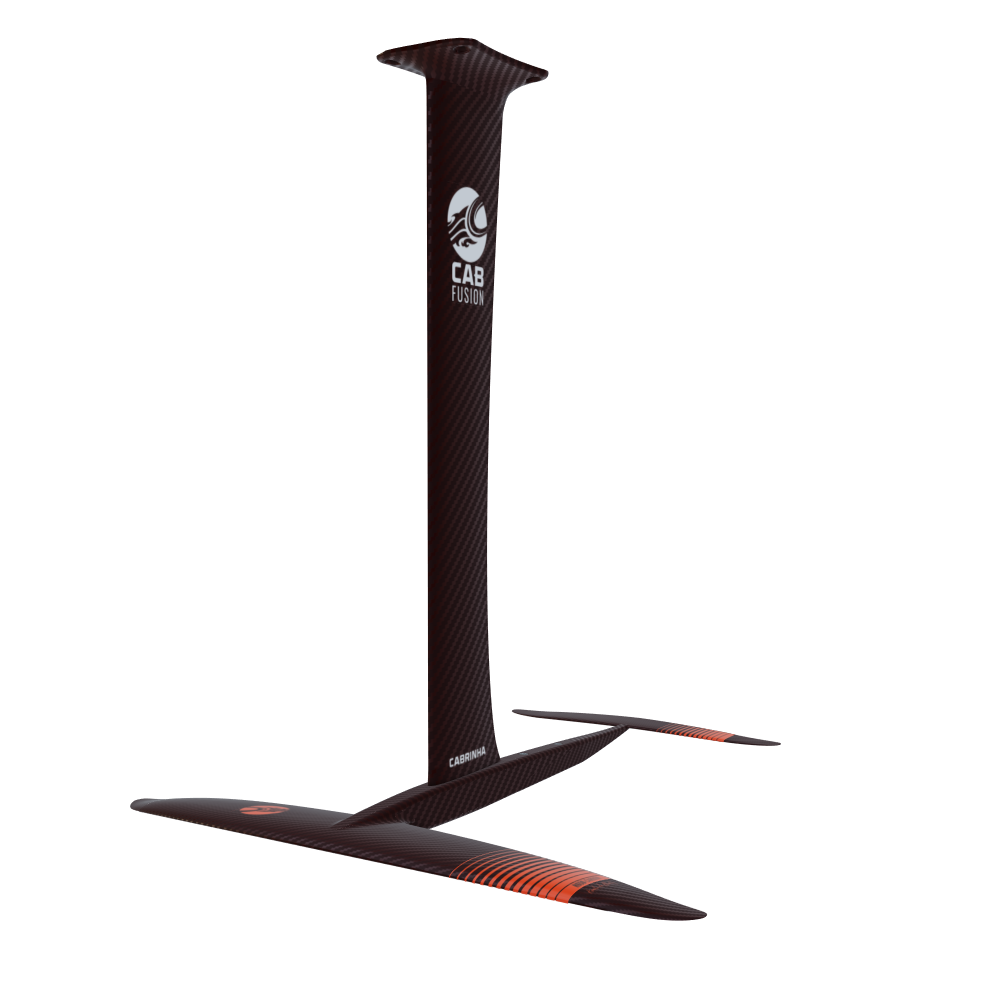

CaBRINHA FUSION CARBON MAST BASE KIT HIGH PERFORMANCE

 - LIGHT WEIGHT Mast Sizes: 70cm, 80cm

DESIGN PROFILE

• Ultimate stiffness to weight ratio and minimum drag.
• Set includes:Mast, rear fuselage, covers, 5pcs m6 ss316 torx titanium coated screws

The Fusion Carbon kit puts performance above all else. The EPS, prepreg carbon construction gives insane stiffness in a lightweight package. It seamlessly integrates into all 9cm industry standard foil boxes. The redesigned fuselage connection platform allows the mast to tightly lock into place to withstand the vertical and horizontal forces involved in all foil disciplines.

MAST FEATURES

• Integrated baseplate for superior stiffness and reduced weight

• I-beam full carbon pre-preg construction.

• EPS core for superior strength to weight ratio

• Precision tapered fuse-to-mast connection for optimal rigidity

• Tapered chord for reduced drag

• 3-screw connection with threaded brass inserts

FUSELAGE FEATURES

• EPS core for superior strength to weight ratio

• Full carbon prepreg construction

• ss316 m6 inserts

• Interchangeable rear fuselage for optimal performance and easy travel

• 346mm rear fuse for superior maneuverability

• Recessed stabilizer mounting surface for minimal drag
